24 March, 2019


I've been a bit busy and distracted by life outside boatbuilding, recently, which is why I haven't had chance to blog.  Frustratingly I've also been slowed down by having done something to my (other) knee, which makes if painful to walk and excruciating to kneel on.  Ibuprofen is helping.  I've even rested it, but the psychological trauma ensuing from that is probably worse than the physical trauma from using it!!

 With the second layer of plywood on, it was time to fill and sand.

 In the photos, it looks remarkably even.  In reality less so, but I don't mind.  I've done my best and it will do what it is intended to: hold the hull together and keep out the water.

 This is meant to be a photo showing how the centreline of the deck is perfectly over the centreline of the bottom of the boat.  Of course, you can't see it and of course by moving the camera one way or the other I could have fudged it.  But anyway, it's a way of having a quiet boast.  I'm rather proud of myself (not to say more than a little startled!).

 The next step is to put the teak on.  Well, no, actually, I need to put on the hatch frames first and fix the king plank - and the covering boards.  But it's all made of teak so I guess I have started laying the deck.  One of the reasons for marking the centreline was to try to ensure that the hatch framing was parallel to it.  The laid decks would make it horribly obvious if it weren't!

 Having done a lot of measuring both on deck and below I started to cut out the opening for the hatch.  Very scary!  For those who object that it's not on the centreline:
(a) the centreline has been reinforced to take the loads from the mast (b) I like the hatch to be over my bunk (c) it won't leak any more or less off to one side.  Either it leaks, or it doesn't.

 With my natty little battery circular saw, I joined the dots (the holes made using a hole saw.  Wonderful things).

 It ended up just about where I had planned.

 I dry fitted it, but subsequently came to the conclusion that you don't want too snug a fit.  It was hard to get the edges epoxy sealed because the thickness of the epoxy meant that the hatch jammed.

I could have put framing for the hatch in when I was doing the plywood, but I wasn't sure exactly where it would end up.  It was no more difficult to do it now.

 I traded (in advance) my thicknesser for a large piece of teak that my friend, Marcus, had.  With huge trepidation - have you any idea what teak costs?? - I cut it and planed it.  Then I cut mitres and glued it all together to make a framework for the hatch.

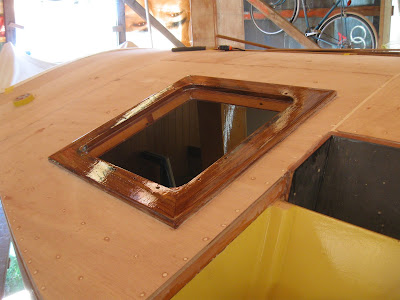

 With the glue cleaned up, the wood sanded and a coat of epoxy on, it looked pretty smart.

 I also had a small hatch, intended to go over the galley. I bought it at a knockdown price for Fantail, but never fitted it.  Just right for Fánshì.

 Again I made a frame for it.  This time I could salvage some teak from an unwanted galley rack that I had been given.

 Fitting the forehatch.

 The galley hatch frame coated.

 I purchased a tube of grey Simsons Marine Glue and applied it lavishly to the hatch.  Supposedly, these hatches are to be level +/- 1mm.  In my wildest dreams I would never achieve this.  I relied instead on using heaps of mastic and just tightening the bolts gently.  Whether it will leak, only time will show.  Being lightproof is not necessarily the same as being waterproof.

 The little hatch was also framed up.

 As you can see, 'little' is the operative word! Still, it's only a little boat.

 I thought of a very cunning plan to line up the framing, using pieces of ply to overlap the joins to keep it even.  The screw was used as a handle to line up the final piece.

 I then used the wee router to trim the head liner and did the same at deck level.  As you can see, I still haven't fitted the trim; this is supposed to be a Sunday job, but as I am typing this at 3.50 pm and still have a way to go, you can see that Sundays tend to get rather over committed.

 Noel Barrot, a well-known and awe-inspiring boatbuilder, comes by to look at my progress on occasion.  He is very kind and never winces at my 'joints'.  He suggested that I pre-bend my covering boards by slowly forcing them into a curve and then holding them down with thumb cleats, while they get the idea.

 Ready to install the galley hatch.  The Simsons cleans up really easily.  An endearing trait.

 And there it is, finally in place.

So now I can get on with the decks.  My stock is in two widths, due to having come from thicker material that had a rebate and that was split in two.  So I laid out all the teak that is required to cover the centre deck.  I have just enough of the wider material.  I used narrower stock on the foredeck and what's left will be used up in the cockpit until I run out!!

 The camber makes the bending of wood nearly impossible - 230 mm of deflection is a lot.  Anyway, I scavenged through the pile of bits that I've been given and acquired and glued lengths together to get approximately the required shape for the after bulkhead.

It cleaned up quite nicely and I temporarily screwed it in place, out of harm's way.  The forward end is much shorter and I will probably laminate the wood for that in situ, possibly facing it so that the laminates don't show.  Lack of finances does mean that some jobs take longer than they might.  No worries, it's all good fun!

Once the covering boards/margins are in place, it will be time for cutting and laying the deck, proper.

03 March, 2019

Mixture same as before

Well, if you thought that last lot of photos of sheets of plywood being laid down were less than exciting, here are more of the same.  However, I'm pleased to report that all the 4mm ply has been glued down atop all the 6mm ply and I am now ready to cut holes for hatches and lay teak.  Or maybe the other way round.  We shall see.  I'm frankly terrified at the thought of cutting said holes!

 David and I had originally agreed to have a little canopy overhanging the after end of the cabin.  There is one on Fantail that does a fine job of keeping out the rain if there's no wind.  However, I've decided against this for three reasons
  1. Fánshì doesn't have a sloping cabin back, so there is less chance of the rain coming in the companionway.
  2. I am going to have a pram hood, which will keep out the rain and allow ventilation even more effectively than the folded down 'washboard'.
  3. I think the camber is more pronounced on Fánshì than on Fantail.  There's a reasonable chance that it will catch me in the back of the neck, if I'm sitting against the cabin back - it will probably be intensely uncomfortable for anyone else.
Anyway, I'm making the deck just about flush with the back of the cabin and used my little router to trim it.

 Laying the 4mm was hardly rocket science.  However, with the temperatures still in the high 30s, it would have been impossible to lay large sheets, even if I could have handled them.  I laid them out to cover the butts in the 6mm, but in truth, as those all landed on beams and stringers, this was hardly necessary.  I tried using staples, but they were such hard work to remove, that I went back to screws again.  I didn't want to leave the staples in because not only would they be hard on the sandpaper, but would undoubtedly interfere with the screws required for the layers of teak to follow.  Even if I had been glassing the deck, they would have been a nuisance.  Bronze and plastic staples don't appear to be available in NZ.

 The 4mm plywood flopped into place much more readily than the 6mm had.  It was now that I discovered what I'd already heard about: the thickness of plywood is nominal.  Apparently, it all rather depends on when they change the sandpaper on the huge belts they use for finishing the plywood.  So the finished sheet can vary in width by over a mm.  This hardly shows when you're using 12mm ply, but becomes quite apparent on 4mm.  It was easy to tell, when I started filling the gaps with smaller pieces, whether or not they had come from the same batch of plywood (the 4mm I've used was bought on two separate occasions).  Still, that's why Mr Makita invented random orbit sanders.  (The belt sander was uncooperative on the steeply sloping deck).

 Due to the framework of the shed getting in the way, it's hard to see that this photo shows a saw, trimming off the bilgeboard case.  David, very sensibly, suggested that I should use this extension to hang the blocks for raising and lowering the board.  However, the acute angle is making it really difficult to fit the decking, so in the end I decided to take it off.  I can always rebuild a smaller version if I can't think of a slightly more elegant solution!

Abaft the bilgeboard cases, I used strips of plywood, having sawn the full sheet into three.  Again, I staggered these more for the 'feel good factor' than from any real necessity.  These longs strips appear to have ironed out most of the bumps and hollows still remaining after sanding.  I am not a professional boatbuilder.  The deck will support the structure and keep out the water, even if they are far from perfectly even.

And so, here we are: a bit of sanding and filling and then it's teak time.  (Actually, sadly there are quite a few other things I have to do before I can start laying the decks, but it does seem imminent!!
