28 January, 2018

Mainly deckbeams

Fitting deckbeams - for me at any rate - is slow, painstaking work.  And not terribly photogenic.  However, I'm quite pleased with the results.

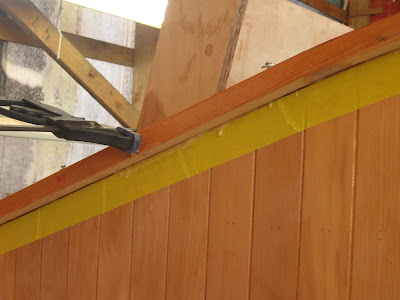

 The first thing to do was to smooth down the upper surface of the bulkhead.  It wasn't sawn perfectly to begin with, although it was pretty good, and there were dribbles of epoxy, etc, from various jobs.  The deck, you may recall consists of two straight lines (on either side) and a curved centre section.  An offcut from the deckbeam stock helped me check that the edges were straight.

 In the meantime, I finished coating the foredeck.  What looks cream in the photos is, in fact, a rather pleasing (to my eye) shade of yellow.  It is impossible to get far enough out of the shed to get a decent photo, but you'll have to take my word for it that it looks pretty smart.

 The next thing was to offer up the deckbeams.  What with springback (the amount the laminated curve tries to straighten out again), and the less than perfect scarfs, this was one of those (many) situations where I was profoundly grateful for the gap-filling properties of epoxy.  As the deck is going to have an inner liner inside the deck beams (to create an even stiffer deck), the 4mm ply will hide these rather wide glue joints.  I hope.  And anyway, knowing my joinery, it will probably require fillets all round to hide the gaps!

 It had also occurred to me that the tabernacle should be varnished before installation.  It will be a lot easier to touch up any scratches than to try and apply varnish between the tabernacle and the side of the bunk.  So over the next several days I varnished a side or two, whenever the time seemed appropriate.

 The existence of epoxy also made it a little less nerve-racking cutting the notches that the beams rest in.  I could have used a multitool for this, but it didn't take that much longer to saw and chisel out the notches and there was less room for making a major botch.

 I dry fitted the beams, levelling them with each other and the one already fitted at the front of the cabin.  It would have been easier if I hadn't fitted the first one - levelling the bulkheads without a beam on them is much easier.  Having realised this, at least I had the sense to do the next three bulkheads at the same time.  I used lots of screws to pull them into place, then backed out the screws, spread glue and put the beams down again.

 The whole project was made somewhat more stressful by the recent temperatures.  38⁰C in the shed with high humidity, thoughtfully topped up by the weather gods with regular showers.  I had to break out the super-slow hardener, which I don't think I even used last year.  I daren't use any other at present.

When I came to fit the intermediate beams in the saloon/galley, I found that they seemed to be lower than the bulkheads.  I thought I was going to have to use brute force to bring them up to the same level as the others once they were installed, which was a bit of a worry.

 The answer came at three in the morning as I lay in bed:  they had simply slipped lower down the sheer clamp and all that was required to put them in place was to clamp them to straight edges laid across the other beams and then screw them to the sheer clamp.  Obvious, no doubt, but not to me and I felt absurdly pleased with myself for working it out.  I was equally pleased for remembering to put spacers between them to ensure that they didn't twist out of alignment while the glue was setting.  With the clamps off and the screws out they are within epoxy-filling reach of accurate.

 Once all the beams from the heads aft were cleaned up, I needed to put in the wood for the liner.  It was a lot easier than in the forecabin, because the lengths between the beams were sufficiently short that I could get away with straight pieces (there is less sheer here, too).

Ever the optimist, I intended to clamp them in, but with the clamps being screwed down at an angle, they slipped and slithered about too much.  A quick round with the drill and a few screws did the job.

Talking of drills, I need to give a shout out to Bunnings, here.  My friend, Steve, had given me on of their cheap and cheerful battery drills and I found I used it a lot.  My battery screwdriver can be a bit fierce, so I used one drill as a driver and one for making holes.  A week or so ago it ceased to take a charge and I took it back, largely because I thought they could dispose of it in a more responsible fashion than I can.  I had no receipt, of course.  To my absolute astonishment, they told me I could have another.  Unfortunately, they don't make this rather natty little drill (with a built-in battery) any more, so the replacement was much more clunky.  However, it was over $11 cheaper and they refunded that, too! That is definitely service above and beyond what I expected, (even if it was the ethically correct thing to do) and I feel they deserve a pat on the back.  I would generally prefer to use Mitre 10 - a Kiwi-owned franchise - but this Aussie company gave me excellent service.

On which happy note, it's back to polishing the portholes.

14 January, 2018

Happy New Year

 My apologies for not having blogged for a while, but Christmas, New Year and Tall Ships can all take their share of the blame.  And I did try to have a bit of a holiday in the holiday season!

Our Tall Ships junket must have been the longest ever, starting well before the Tall Ships Regatta and, indeed, I believe that there are still junkies up there, sailing in company and socialising even as I write.  My own effort to join in was looking to be a disaster, when the car that I share broke down the day before.  A severe gale came along later in the day to give me a sleepless night, as I battened down the shed and then was kept awake by its shuddering through the night.  The Friday before Tall Ships dawned blowy and wet, but I caught a bus up to Opua, persuaded my kind friend, John, to collect me from the car ferry and arrived to find that conditions had moderated sufficiently for me to get out to Zebedee, where I had been offered a berth for the night.  He was the only boat I had the slightest chance of boarding, being in a more sheltered spot than most of the fleet!  Conditions moderated sufficiently for us to be joined by several other boats and the mandatory pre-Tall Ships Race dinner was enjoyed by all who managed to make it.

 The next day dawned bright, but breezy and I have to say I was less than enthusiastic about sailing around with a large group of other boats.  it may be a 'friendly' race, but people do get competitive ...

Roger Scott took some great photos and here is one of Zebedee and Blondie storming along before the start line.


We made a bad start, largely due to the fact that neither skipper Alan, nor helmsman, Annie, had bothered to pay a lot of attention to the instructions.  I reckoned my job was to point the boat as directed so lay the blame squarely on Alan's shoulders.  Our sole crew member was too busy watching the other boats to get involved until Alan asked her: "Just which beacon are we supposed to use?"  Hmm, we'd chosen the wrong one.  However, Zebedee took off in hot pursuit of the fleet and we slowly overhauled every single junk, bar Tystie (and we even got ahead of her for a while) leaving Alan ecstatic and me exhausted.  Zebedee is a bit of a brute, close-hauled in gusty conditions and insists that his mainsheet be eased before he will bear away in a gust, so that was Alan's job.  At one point it felt extremely hairy, with boats all round, rocks not far to windward, me desperately trying to leave boats enough room to windward and those to leeward desperately trying to get past us and clear.  Not really my cup to tea, I have to confess.

However, in due course, we were in less crowded conditions, and by watching another couple of canny boats ahead of us, I managed to avoid getting becalmed in the lee of Roberton Island.  That's when we overtook Tystie.  A tacking duel followed, in which we went faster and higher that she did on port, only to lose it all again on starboard.  Sadly for Alan, there was a lot more sailing on starboard than on port, but we still felt that Zebedee had done really well for himself.

 I stayed on for another day of socialising, while the rest of the junkies carried on having a perfectly wonderful time.  I gather there has been much sailing in company, visiting back and forth and blather about all things junk.  This is another of Roger's great photos of Zebedee sailing alongside Fantail, showing off the new sail that Bryan has made.

 Anyway, enough of fun and frivolity.  Back to the hard grind.  Just before Christmas, I finished varnishing the forecabin.  I confess to feeling very pleased with it!

 You may recall that back in the dim and distant past, I put the deck on, and anchor lockers in the foredeck.  Belatedly it occurred to me that the chain locker would hold chain and that the anchor would be on the bow and that the two would be connected.  Therefore, it might be a good idea if the chain could come out of the locker without the hatch needing to be open.  After pondering for a while on how to protect the woodwork, I went to Stanley's and bought a second-hand skin fitting for $5 and cut it in half.  It should do the job nicely.

  One of the jobs that I've been frankly terrified of doing, is cutting holes for the portholes.  If I put them in the wrong place, there would be no going back.

I had found a hole saw, the correct size for the cut-out (which struck me as a lucky break), but had also been put off by the dire warnings of the thing getting out of control while I was trying to saw the hole out.  Big, heavy powerful drills can be a handful for most men and can certainly do a lot of damage in my hands.  However, it had to be done, so I borrowed a more powerful battery drill than the one I own and set to.  Apart from taking a long time (I used the slow setting), it was pretty painless.


And the result was most satisfactory.

 This is what it looks like from on deck ...

And this is the view from below.  A red letter day, for me.

Another job that has been daunting me is fitting the deck beams.  This is another of those jobs that just has to be done correctly, otherwise I'll end up with an undulating deck.  Unfortunately for me, joinery is required in order for the beams to notch into the sheer clamp.  However, one of the things that I've learnt is that if I take something sufficiently slowly and carefully (one reason why this boat is taking so long) I can usually figure out how to get to where I want to.

 I marked the bulkhead, planed and then sanded it to match the beam (sending up prayers of thanks to whoever it was who invented gap-filling epoxy, which turns this bodger into a builder) and little by little got the beam, bulkhead, and sheer clamp to match.

 That done 'all' that remained was to glue it into place, with the assistance of clamps and temporary screws.

 Ah yes - I forgot to say that the reason I finally fit one of the deckbeams, was because I wanted to finish off the foredeck (apart from the bulwark capping) and couldn't do that unless the deck beam had been put in place.  With everything masked off, and after preparing the remaining deck box for painting, I set to.

 The first coat was applied with a brush, but when SibLim Club member, Phil, asked why I wasn't using a roller I decided to give it a go.  I'm not the best with these things, but have to say it went on quite nicely.  'But it takes a lot more paint than putting it on by brush,' I pointed out. ' Isn't that the idea?' he asked me.  Duh.

 While the paint dried, and with the bit in my teeth insofar as deckbeams are concerned, I added an extra batten of wood on the inside of the sheer clamps.

 These provide a landing for the inner deck liner, which ends up creating a stiffer deck.

 More framing will be required between the deckbeams and the stringers so the deck is supported and the deck liner has something to glue to.  Fitting that should be an interesting exercise ...

 Part of fitting the deck beams involves fitting the tabernacle.  Or the other way round if you prefer.  It will be a lot easier to sand and varnish it while it's horizontal than when it's in place.  Another job that can be carried out while paint hardens off.

 And while I'm at it, I need to decide what porthole goes where.  The glass is badly scratched in some of them, so I don't want those right next to my face when I'm sitting up in my bunk or in the saloon.  I may as well finish cleaning all of them up while I'm at it.

And here is the foredeck, with the final coat of paint applied.  Once it has cured a bit, I'll sand both it and the varnish down and apply clear finish over the lot.  This makes scrapes easier to repair, if they're not too deep and effectively seals the edge where paint and varnish meet.  When it all starts to look a bit scruffy, all that is required is to coat the lot with a couple of coats of clear polyurethane.  When this boat is launched, I hope to keep maintenance to a minimum!
